RL-SA500.1: 500 Watt – Subwoofer Monoblock Amplifier
RL-SA500.1: 500 Watt – Subwoofer Monoblock Amplifier
Couldn't load pickup availability
The REDLINE SA Series amplifiers employ cutting-edge Class D technology, delivering powerful output within an incredibly compact chassis. This combination offers significant power and savings in a small space.

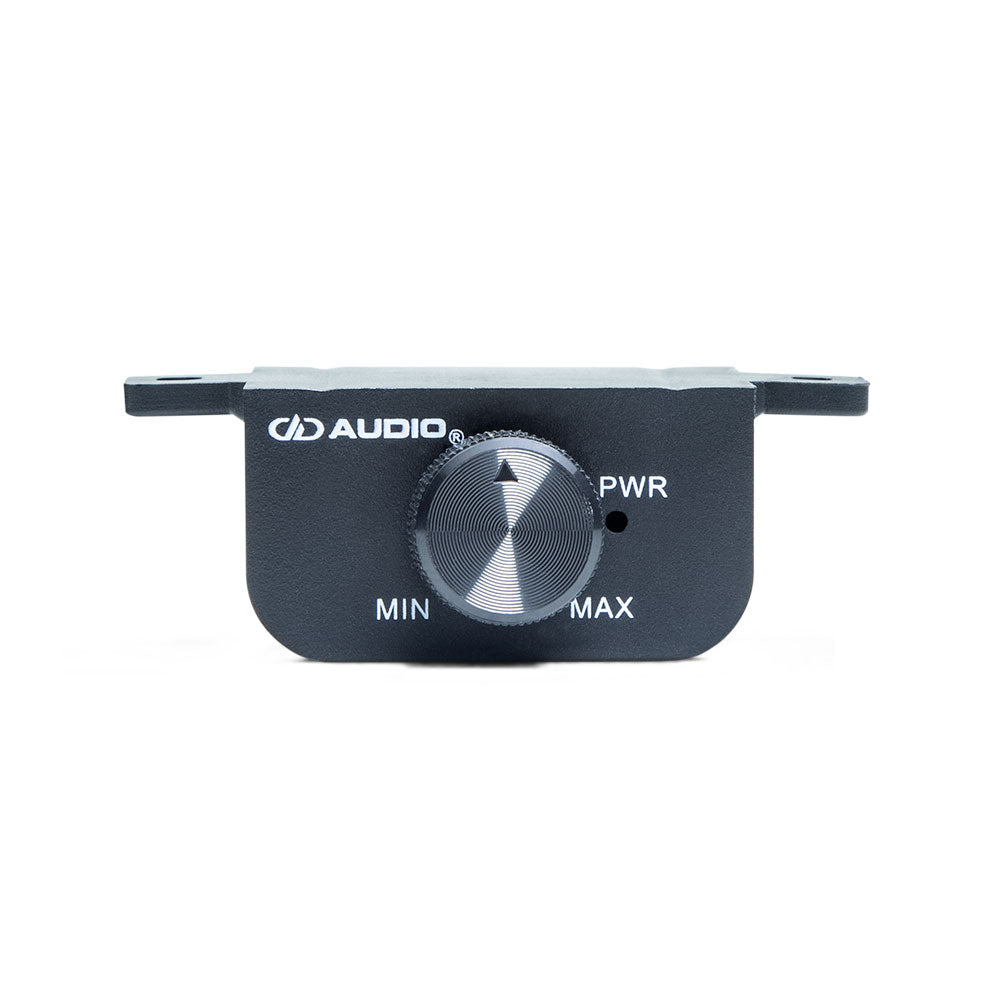

Efficiently providing power to drive a DD AUDIO loaded enclosure or a pair of RL-SW subwoofers, the RL-SA500.1 features bandpass crossovers and bass boost capabilities, enabling precise tuning of the sub stage. The included remote control knob allows for on-the-go adjustments to subwoofer volume.
The REDLINE SA Series amplifiers accommodate both RCA Line Level and High Level inputs, enabling seamless factory integration without requiring a line output converter or an aftermarket head unit.
Featuring set screw power and speaker terminals, the REDLINE SA Series amplifiers ensure secure and reliable connections typically found only in higher-end models.
| Operating Voltage: | 10 - 16 |
| Test Voltage: | 14.4 |
| Output Channel(s): | 1 |
| Continuous Wattage @4ohm: | 250 |
| Continuous Wattage @2ohm: | 390 |
| Continuous Wattage @1ohm: | 500 |
| Dynamic Wattage: | 1000 |
| Max Current Draw (Amps): | 50 |
| RCA Input Voltage Sensitivity: | 6 - 2.5 |
| High-Level Input Voltage Sensitivity: | 20 - 1.1 |
| RCA Input S/N: | > 85 |
| Damping Factor: | > 70 |
| THD: | < 0.1% |
| Bass Boost: | 12dB @ 45Hz |
| Frequency Response (Hz): | 10 - 250 |
| Sub-Sonic Filter: | 10 - 50 |
| Low-Pass Filter: | 30 - 250 |
| ZVL Input: | No |
| Pass Thru Output: | No |
| Remote Control: | Remote Included in Box |
| Power Wire Gauge: | 4 |
| Speaker Wire Gauge: | 12 |
| Dimensions (Inches): | 7 x 3.8 x 1.69 |
| Dimensions (MM): | 180 x 96 x 43 |
