DD AUDIO

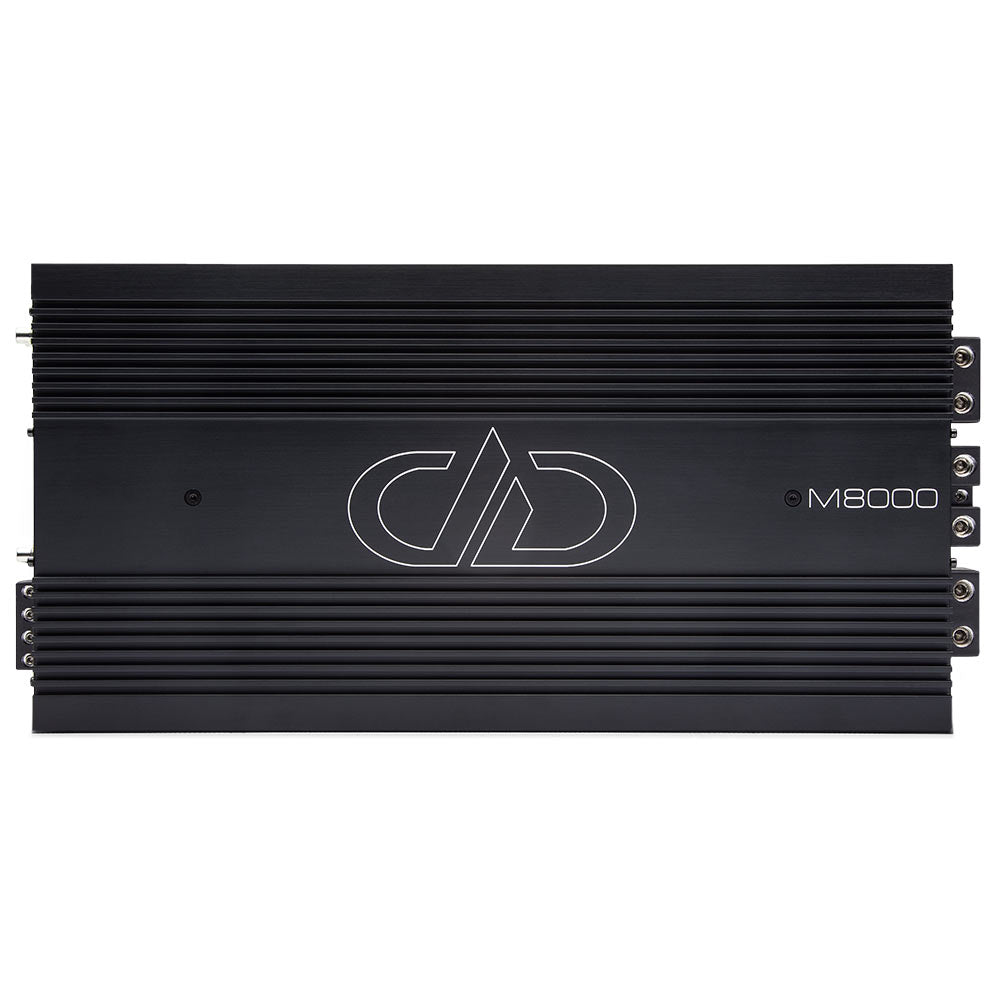

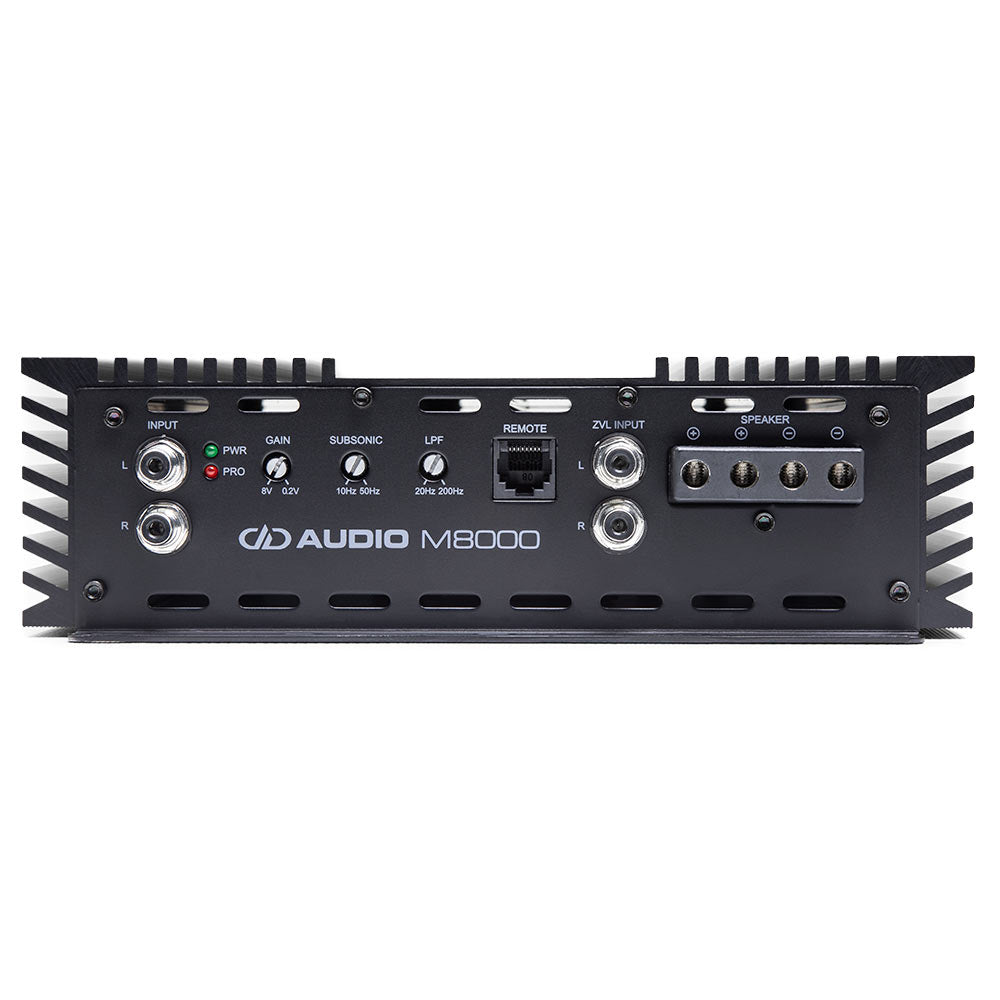

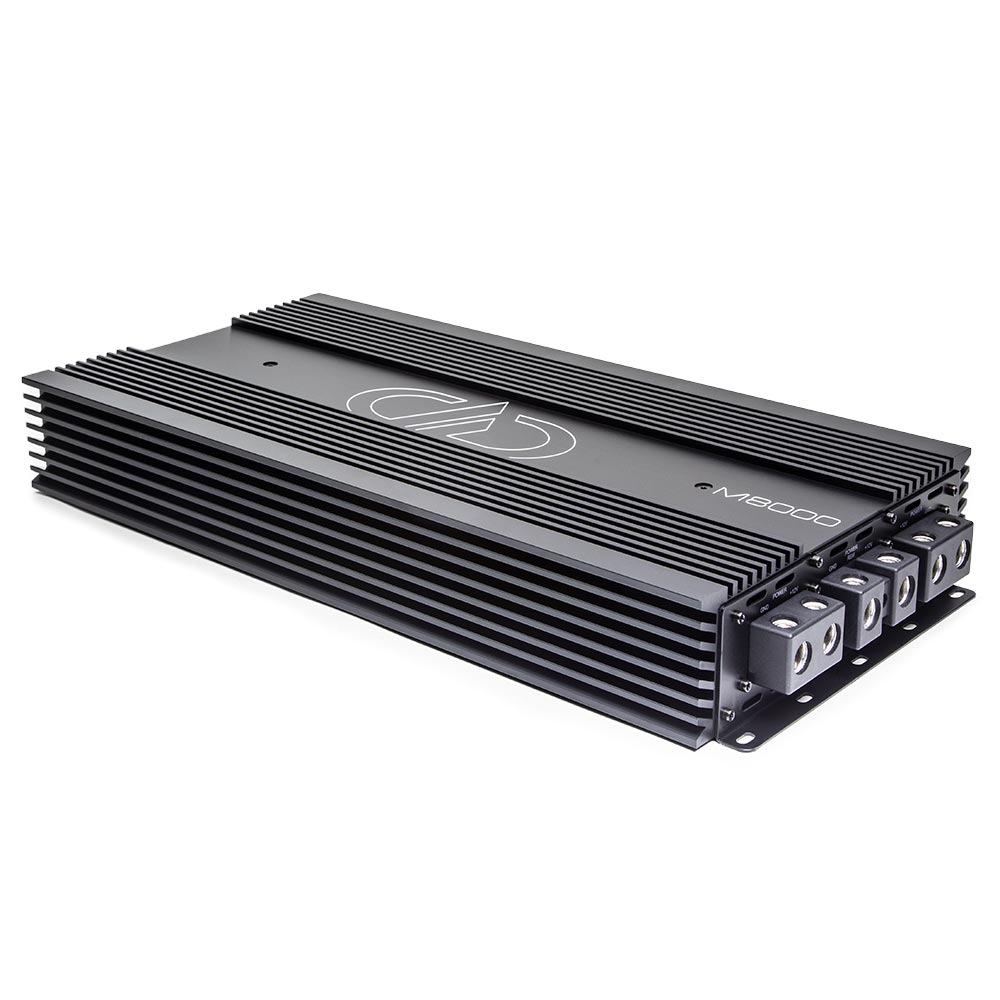

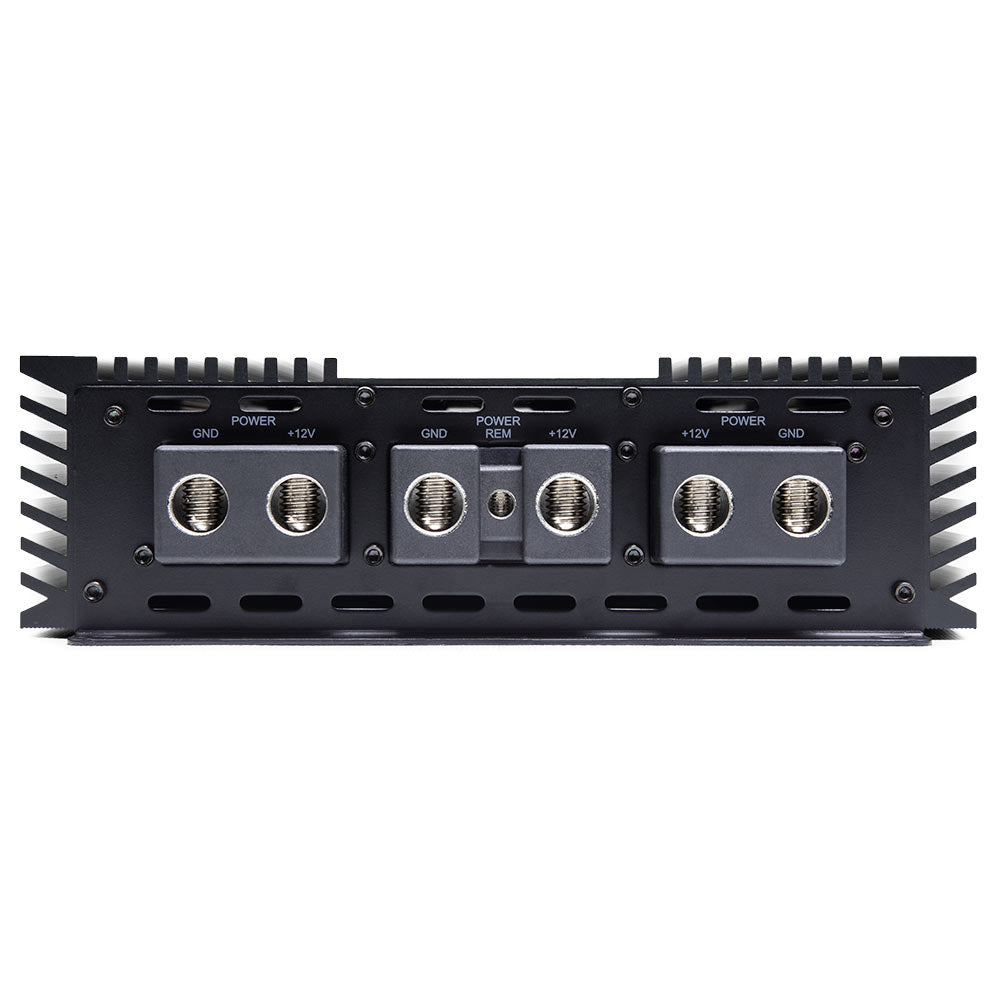

M8000 | M Series Monoblock

M8000 | M Series Monoblock

Regular price $1,849.00 USD
Regular price Sale price $1,849.00 USD
Sale Sold out
Shipping calculated at checkout.

The next generation of the iconic M Series takes advantage of the latest semiconductor technology and combines it with state of the art amplifier design. This combination to offers power to footprint ratios previously impossible for current driven-half bridge amplifiers. Even though the chassis are more compact, the new M Series hasn’t lost any output power or stability. With robust heatsinks, multiple power and ground inputs, heavy duty PCBs, and top shelf internal components these amplifiers are ready to handle even the most demanding listening sessions.

Features

  • Optimized High Current Power Supply
  • ZVL Linking Module Input
  • 24dB/Oct Bandpass Filters
  • Custom Vanity Plate Ready

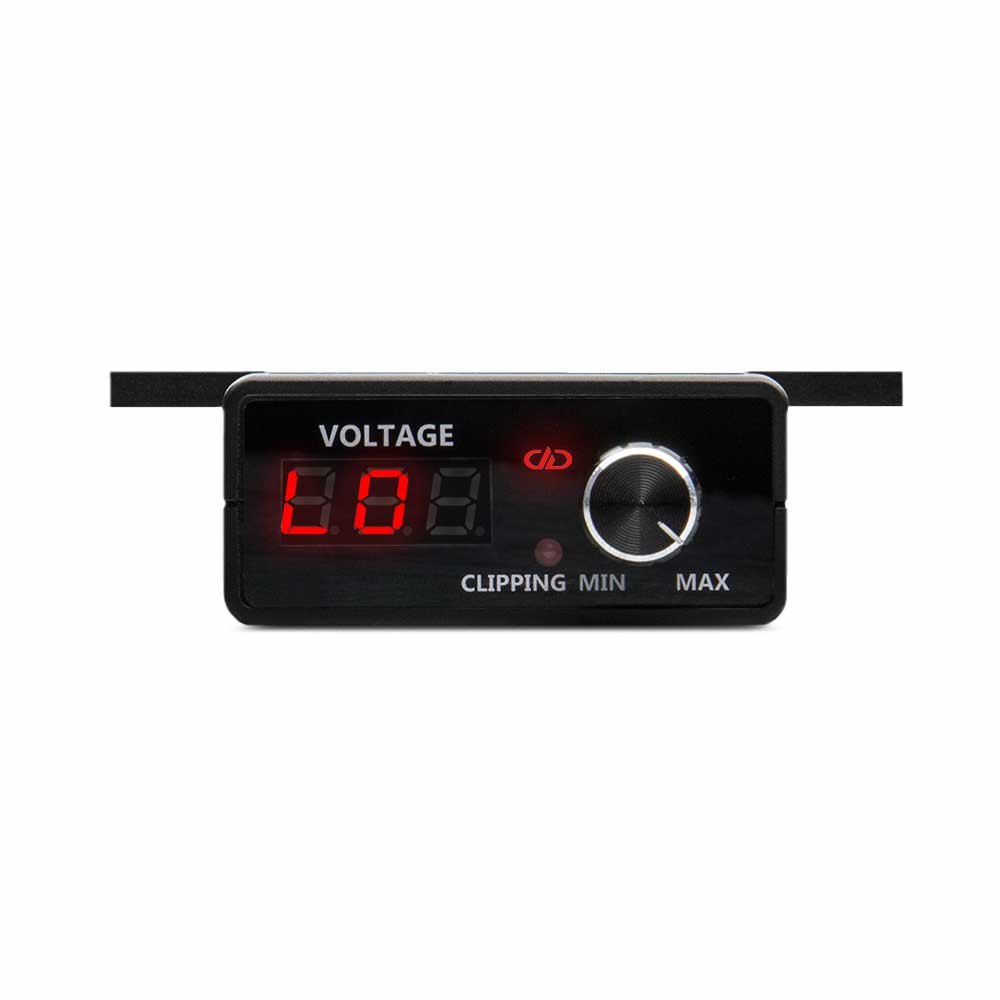

  • Remote / LCD Voltage Display and Clipping Indicator
  • Operating Voltage: 9 - 16
    Test Voltage: 14.4
    Output Channel(s): 1
    Continuous Wattage @4ohm: 3000
    Continuous Wattage @2ohm: 5000
    Continuous Wattage @1ohm: 8000
    Dynamic Wattage: 10500
    Max Current Draw (Amps): 800
    RCA Input Voltage Sensitivity: 8 - 0.2
    RCA Input S/N: > 92dB
    Damping Factor: > 400
    THD: < 0.2%
    Frequency Response (Hz): 10 - 200Hz
    Sub-Sonic Filter: 10 - 50Hz
    Low-Pass Filter: 20 - 200Hz
    ZVL Input: Yes
    Pass Thru Output: No
    Remote Control: Remote Included in Box
    Power Wire Gauge: 3 x 0
    Speaker Wire Gauge: 10
    Dimensions (Inches): 17.75 x 9 x 2.85
    Dimensions (MM): 450 x 230 x 72
    Shipping Weight (Lbs): 24
